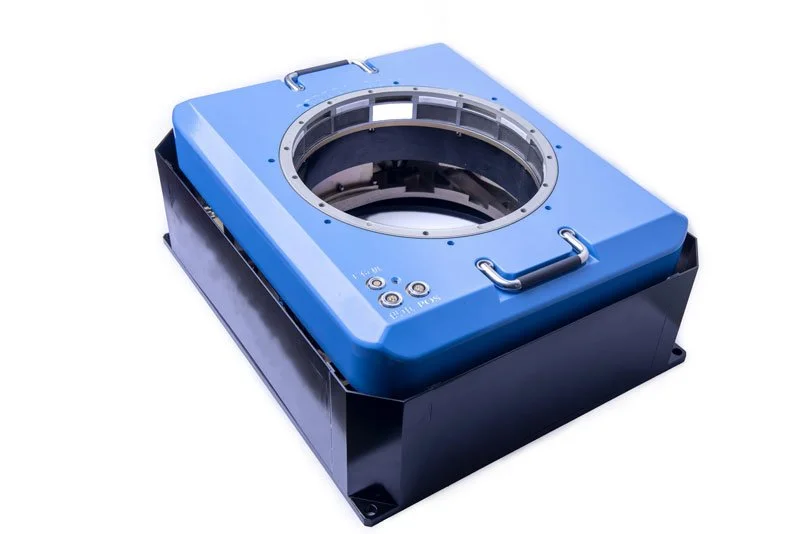

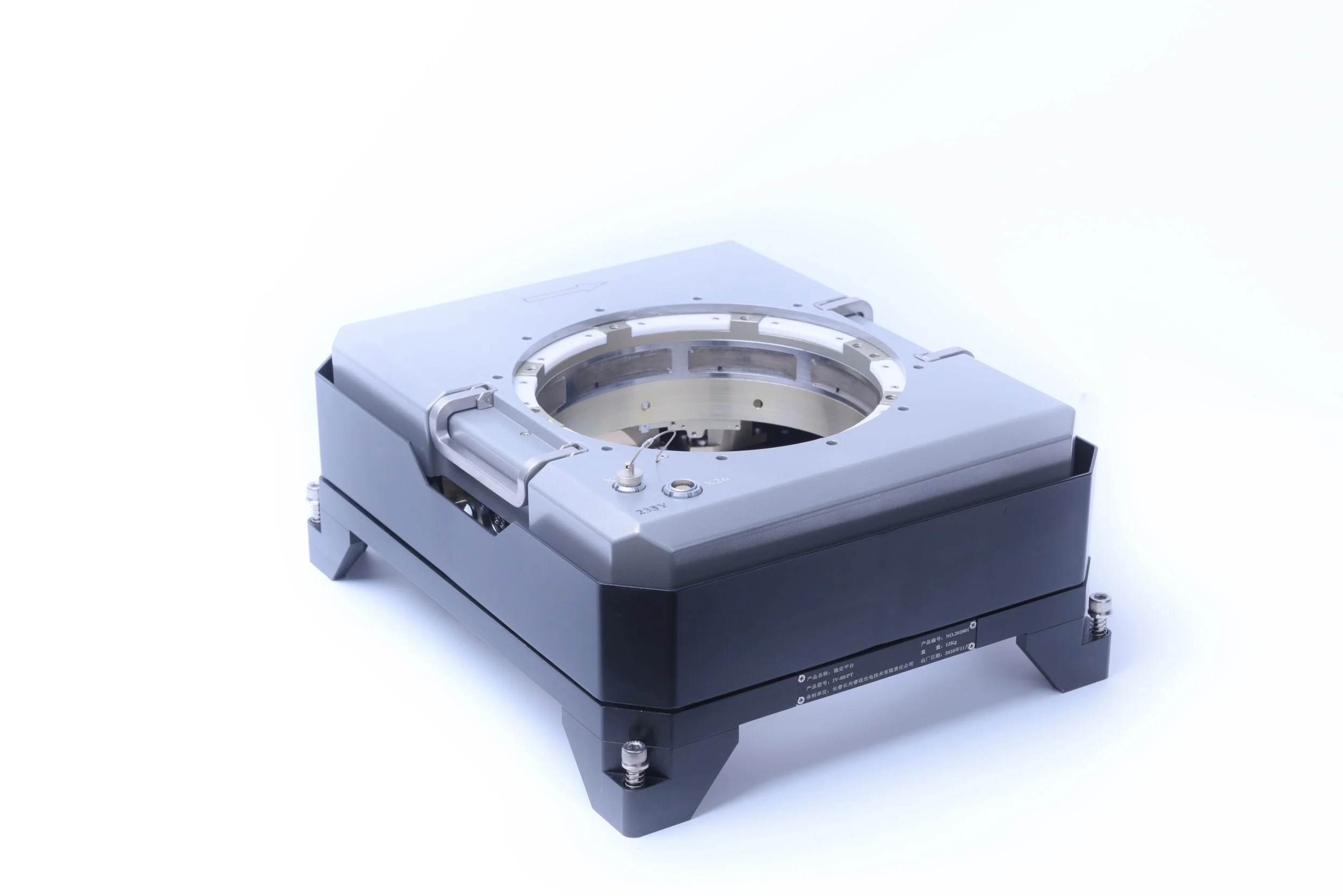

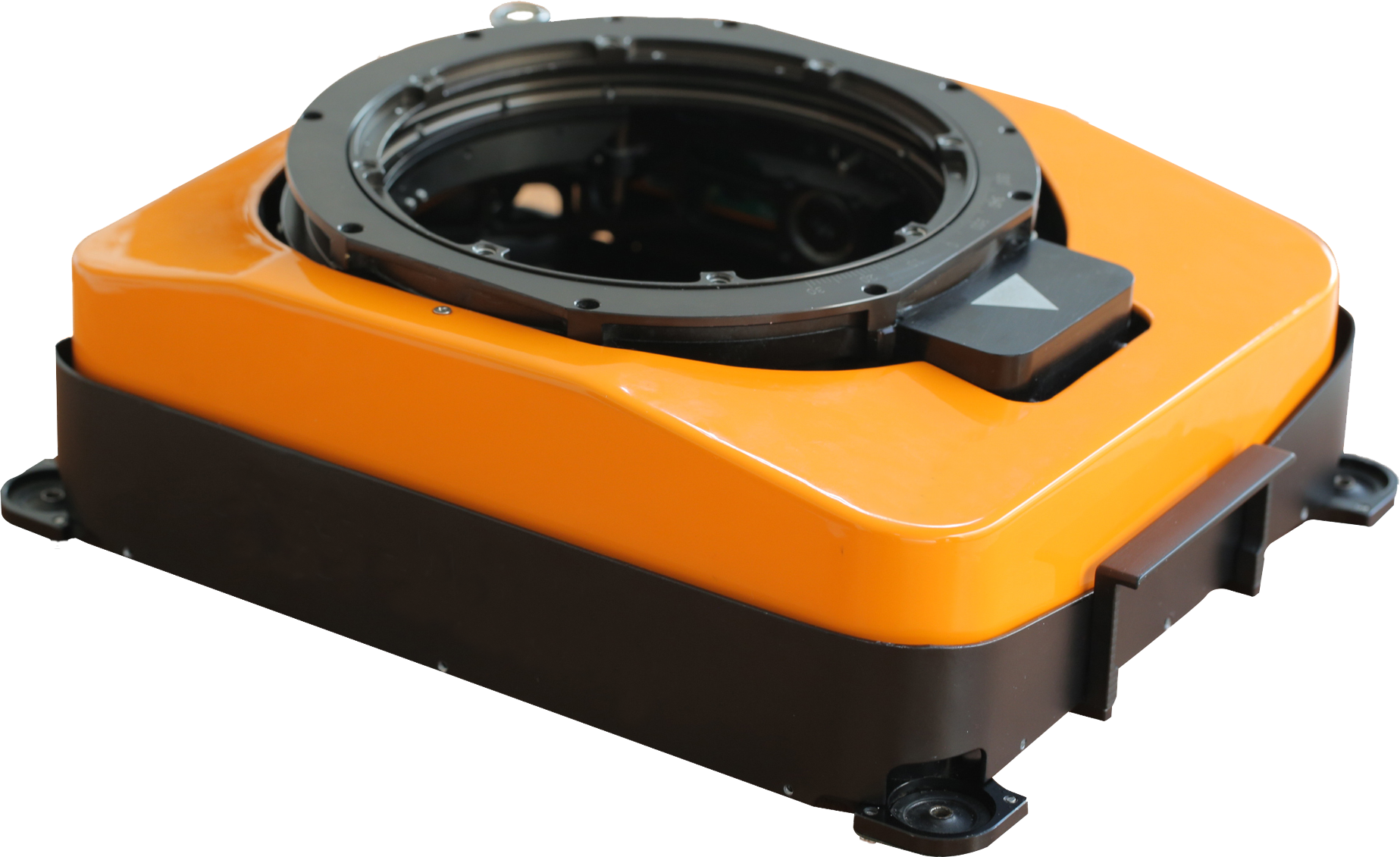

Gyro stabilizer

The gyro stabilizer provides excellent vertical photography capabilities for aerial remote sensing, and can perform drift compensation by setting the actual track and the expected track to improve the image rotation angle deviation. Multi-sensor fusion, advanced servo control algorithm and wide stability range can adapt to various harsh flight conditions, and excellent circuit design and structural design ensure the high reliability of the system.

Broad Applications of the Gyro Stabilizer

Aviation & Aerospace

  • The Gyro stabilizer originated in military aircraft and satellites to keep payloads—cameras, sensors, weapons—perfectly aligned.

  • Today, Huanxin Co., Ltd. Gyro stabilizer solutions control satellite attitude and Earth-observation optics with sub-arc-second accuracy.

Unmanned Aerial Vehicles (UAVs) & Mapping

  • Drones carrying high-resolution cameras or LiDAR rely on a Gyro stabilizer for vertical photography and precision mapping.

  • A Huanxin Co., Ltd. Gyro stabilizer automatically cancels roll, pitch, and yaw in gusty winds, delivering distortion-free images.

Maritime Monitoring

  • Shipboard radars and antennas mount a rugged Gyro stabilizer to remain locked on target in heavy seas.

  • Huanxin Co., Ltd. offers salt-spray-resistant Gyro stabilizer models that guarantee continuous data links.

Ground Surveillance & Autonomous Vehicles

  • Mapping vans and self-driving cars fit a roof-top Gyro stabilizer so cameras and lasers stay level on bumpy roads.

  • The Huanxin Co., Ltd. Gyro stabilizer maintains millimeter-grade pointing for high-definition street maps.

Industrial Robotics & Cinematography

  • Robotic arms integrate a compact Gyro stabilizer to eliminate micro-vibrations during precision assembly.

  • Film crews rely on the three-axis Huanxin Co., Ltd. Gyro stabilizer for buttery-smooth tracking shots at high speed.

Why the Gyro Stabilizer Matters in Aviation

Enhancing Flight Stability

  • The Gyro stabilizer senses angular rates in real time and injects counter-torque within 2 ms, dramatically cutting drift and turbulence.

Reducing Drift & Turbulence

  • A Huanxin Co., Ltd. Gyro stabilizer holds actual flight paths within ±0.05° of the planned trajectory—comparable to GPS auto-rerouting without manual input.

Key Advantages of the 3-Axis Gyro Stabilizer

Core Technology Huanxin Co., Ltd. Gyro stabilizer Feature User Benefit
Multi-Sensor Fusion Combines gyros, accelerometers, magnetometers, GNSS in Kalman filtering 40 % higher attitude accuracy; drift < 0.01°
Advanced Servo Control Adaptive PID + model-predictive control on direct-drive brushless motors 30 % less jitter; ultra-smooth motion
Wide Stability Range Operates -40 °C – +70 °C; survives 35 m/s wind, high G-loads 98 % pointing availability in harsh weather
Excellent Circuit Design Dual-redundant power rails, TVS surge protection, EMI filters Mission reliability > 99.9 %
Robust Structural Engineering CNC-milled aerospace aluminum, carbon-fiber dampers 3 000 h continuous use with no re-calibration

Technical Deep Dive

Advanced Servo Control Algorithms

Each Gyro stabilizer from Huanxin Co., Ltd. runs a fifth-generation controller:

  1. Adaptive PID adjusts gains on the fly for every flight phase, locking attitude in 0.002 s.

  2. Model-Predictive Control (MPC) forecasts disturbances and pre-positions torque to nullify them fast.

Wide Stability Range Adaptation

  • Temperature-compensation tables plus pressure-altitude curves keep Gyro stabilizer accuracy < 0.1°.

  • A carbon-fiber/aluminum honeycomb frame reduces mass by 18 %, enabling snap-back responses to gusts.

Handling Harsh Flight Conditions

  • Triple isolation—rubber mounts, floating PCBs, digital notch filters—lets the Huanxin Co., Ltd. Gyro stabilizer pass MIL-STD-810H shock and vibration with margin.

Reliability That Sets the Gyro Stabilizer Apart

Excellent Circuit Design

  • Redundant regulators plus TVS diodes shield the Gyro stabilizer from voltage spikes; full-shielded signal lines cut EMI by 45 %.

Robust Structural Engineering

  • Aerospace-grade alloy frames prevent long-term flex.

  • Swappable dampers simplify field maintenance, extending Gyro stabilizer service life.

Product Highlights at a Glance

Gyro stabilizer multi-sensor fusion, Gyro stabilizer servo precision, Gyro stabilizer wide range tolerance, Gyro stabilizer circuit excellence, and Gyro stabilizer mechanical toughness—each refined by Huanxin Co., Ltd. for next-level stability.

Conclusion: Why Choose a Gyro Stabilizer from Huanxin Co., Ltd.?

  • A world-class Gyro stabilizer is essential for modern aviation, maritime, ground, and industrial systems.

  • Huanxin Co., Ltd. delivers a proven three-axis Gyro stabilizer that remains stable, precise, and reliable when the mission demands perfection.

  • Integrating a Huanxin Co., Ltd. Gyro stabilizer ensures crystal-clear data, safer flights, and longer payload life—even in extreme environments.
